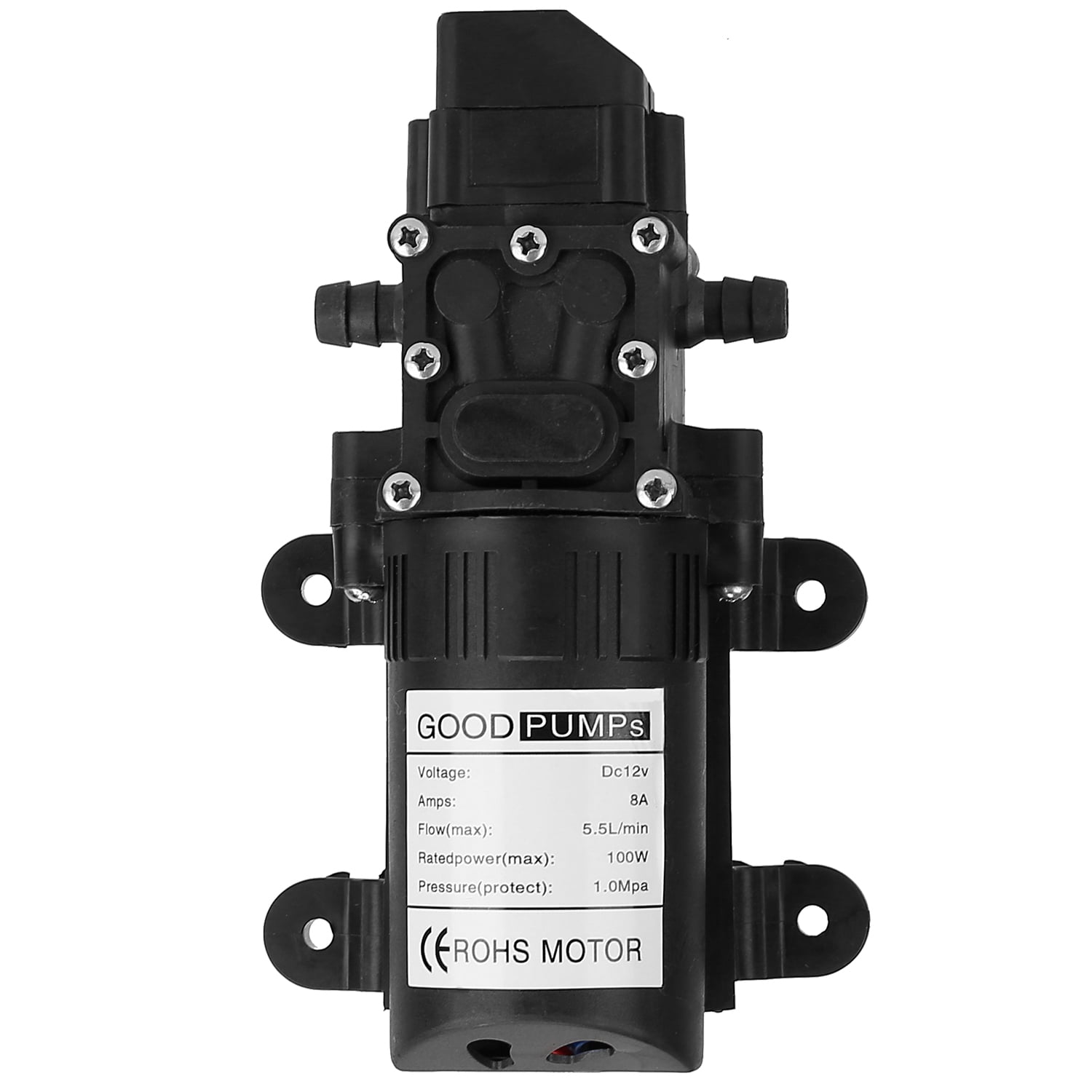

12V 100W Electric Diaphragm Water Pump w/ 2 Hose Clamps 123PSI Self Priming Sprayer Pump

★★★★★ 4.4 20 reviews

US$9.76
Price when purchased online
Free shipping Free 30-day returns

Sold and shipped by klauswalbrou.fr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$9.76
Price when purchased online
Free shipping Free 30-day returns

How do you want your item?
You get 30 days free! Choose a plan at checkout.
Shipping
Arrives Sep 3
Free
Pickup
Check nearby
Delivery
Not available

Sold and shipped by klauswalbrou.fr
Free 30-day returns Details

Product details

Management number 238058272 Release Date 2026/07/11 List Price US$9.76 Model Number 238058272
Category

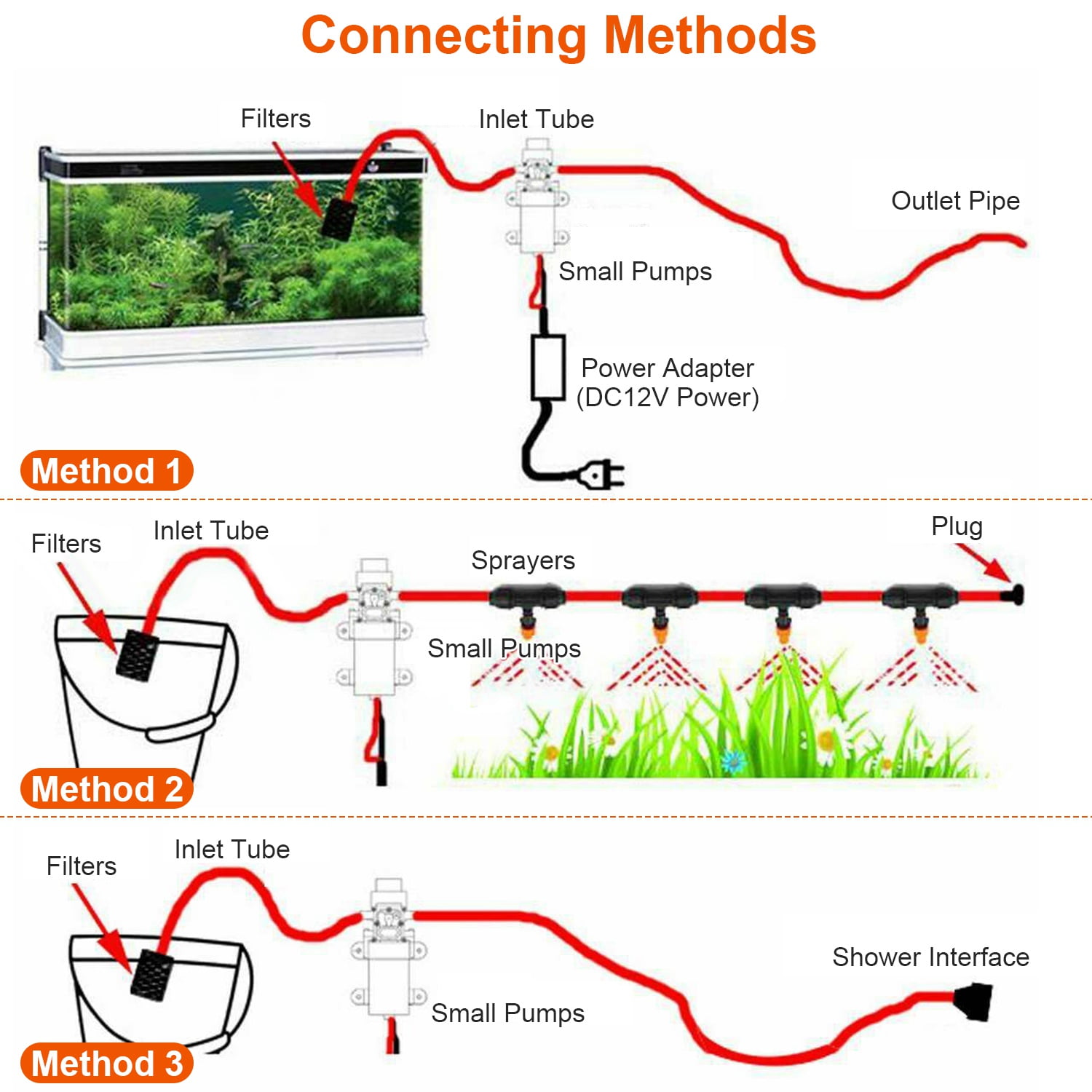

<p> 100W Electric Diaphragm Water Pump can be connected to any DC12V power supply for operation and use, the self-priming function allows it to be installed above the water tank; when the pressure at the outlet is high enough, the pump will automatically stop, and when the pressure drops, the pump will start again; it is widely used in sprayers, garden sprinklers, tour buses and so on.</p>

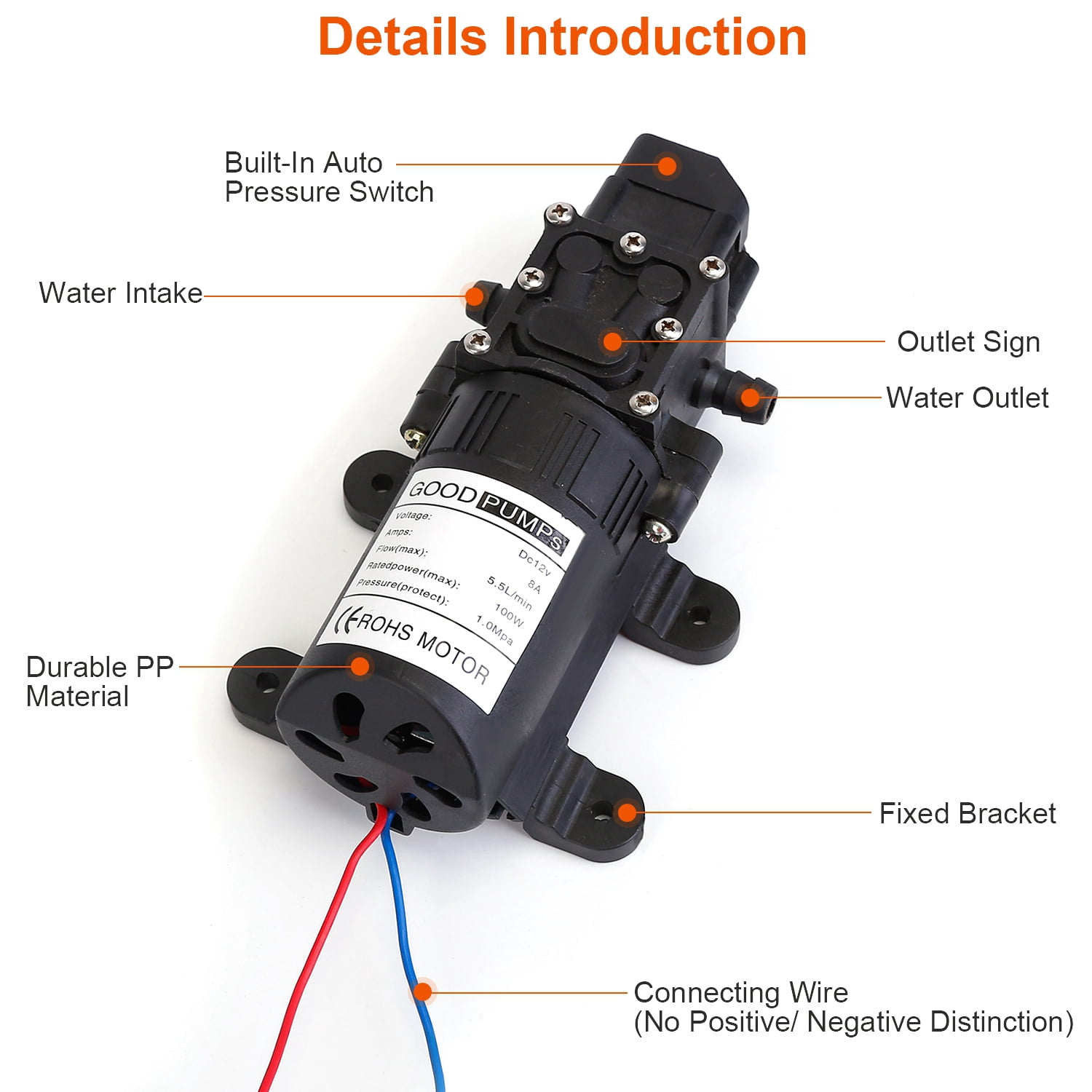

  • Self-priming Pump: The self-priming feature of the 12V DC Water Pump prevents backflow of liquid from the pump, allowing it to be mounted above the tank.
    Note: Do not immerse the compact pump in water.

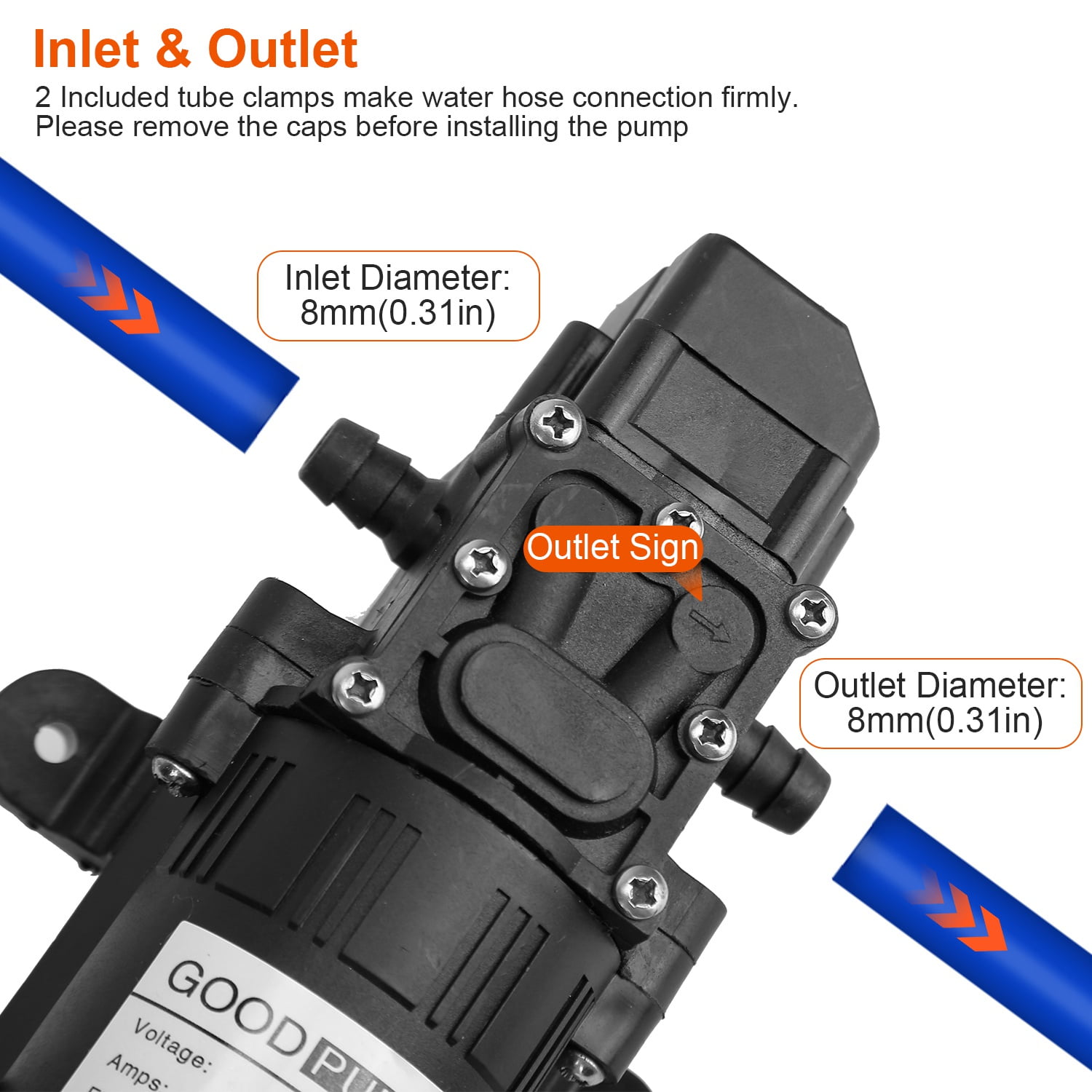

  • Inlet and outlet: This 12 volt diaphragm pump comes with 2 clamps for secure connection to an 8mm I.D. water hose; left hose in, right hose out.
  • EASY CONNECTION: Simply connect the two wires to the 12V power battery or any 12V power converter when using the Self Priming Sprayer Pump, no need to worry about the positive and negative terminals.
  • WIDE APPLICATIONS: 100W Electric Diaphragm Water Pump can be used in sprayers, garden sprinklers, lawns, caravans, special vehicles, boats, vehicles, carpets, floor cleaning, water purification and water treatment equipment.
  • Operating Tips:
    It is recommended to install in a dry, ventilated area and not to work under water.
    If the outlet pressure exceeds 123PSI, the pump will automatically shut down.
  • Specification:
    Brand:
    Product Type: 12V Diaphragm Water Pump
    Color: Black
    Material: PP+Pure Copper Coil
    Voltage: DC12V
    Max Current: 8A
    Max Rated Power: 100W
    Max Flow Rate: 5.5L/Min
    Max. Working Pressure: 0.85MPA/ 123PSI
    RPM: 3000R/Min
    Compatible Water Hose: Hose With 0.8mm Inner Diameter
    Connecting Wire Length: 39cm/15.35in

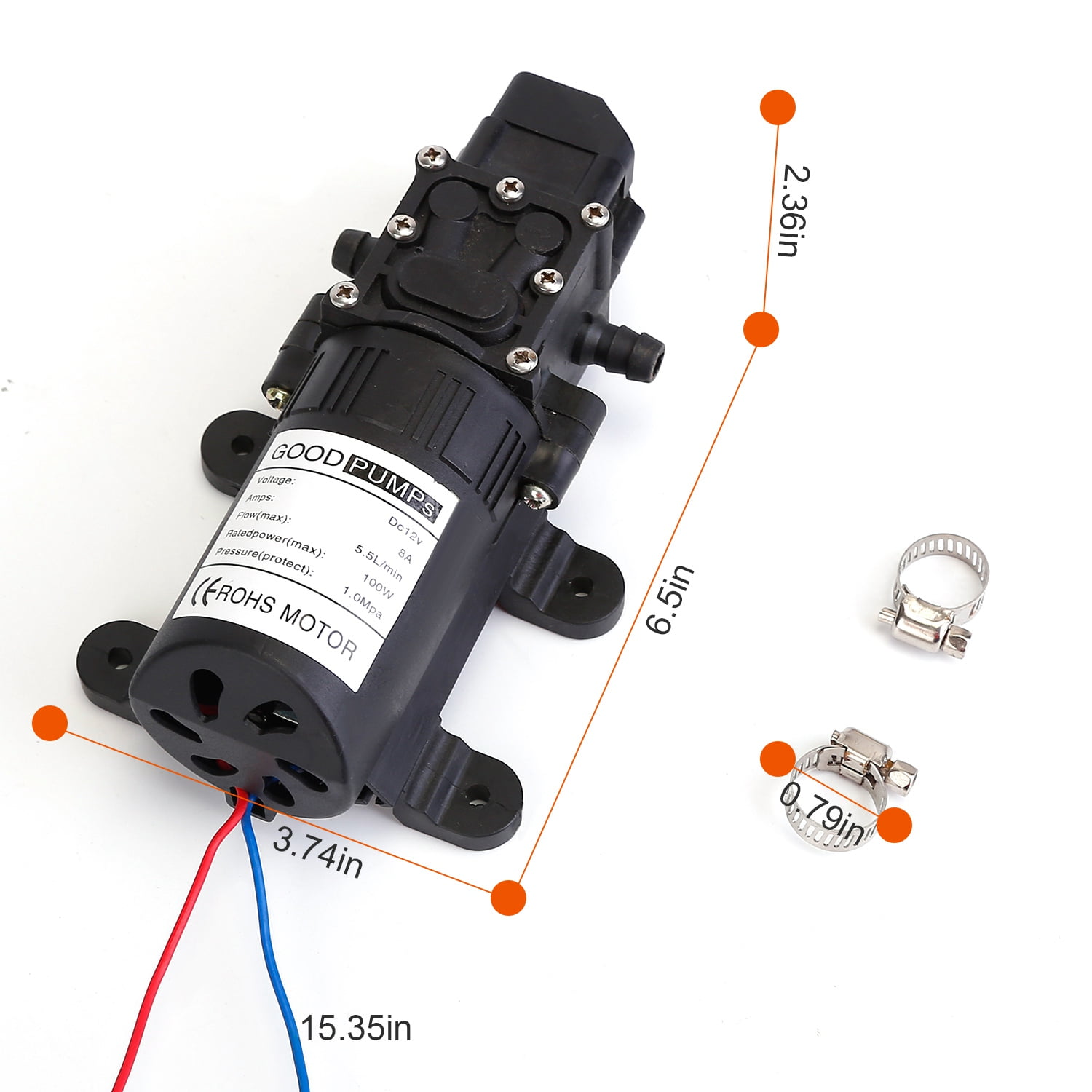

    Item Size: 16.5x9.5x6cm/6.5x3.74x2.36in
    Item Weight: 563g/1.24lbs
    Package Size: 17*12*10cm/6.69*4.72*3.94in
    Package Weight: 614g/1.35 lbs
    Package Contents:
    1 x 12V Diaphragm Water Pump
    2 x Hose Clamps
    1 x User Manual
Gallons per minute 5.5 GPM
Plumbing pump type Diaphragm Pump
Power type Corded Electric
Brand Na Na
Features Automatic, Compact
Volts 12 V
Assembled product height 2.36"
Weight 1.24 lbs
Has written warranty No
Accessories 2 x Hose Clamps, 1 x User Manual
Amps 8 Amps
Watts 100 Watts
